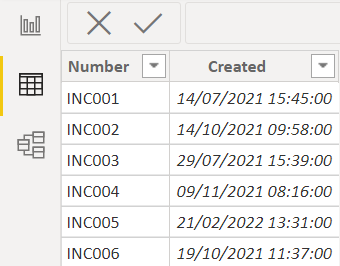

It is not as easy as with excel or with ServiceNow because when I take a look in the “visualizations”, I see a lot of options but not the trend one and if I select “stacked column chart”, it will not do the trend. For instance, I have this data:

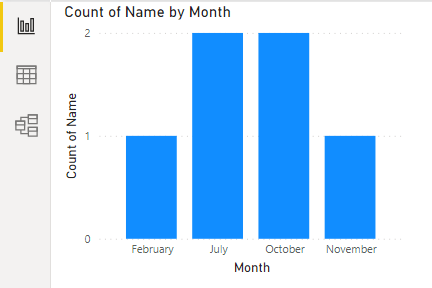

Trying to do the trend, I got this:

It seems correct, right ? But not, because, the “created” date, all are 2021 except February which is 2022 so the order is not correct.

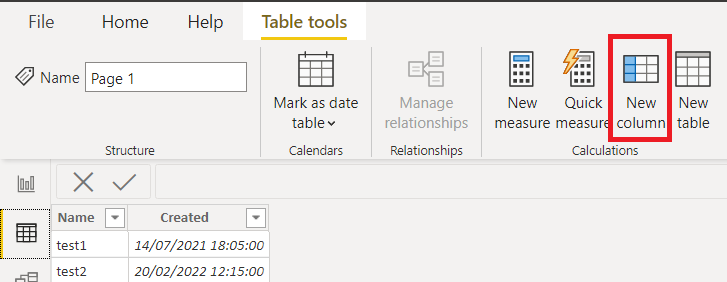

To make it right, I need to create a new column from “data”, in the “table tools”, select “new column”:

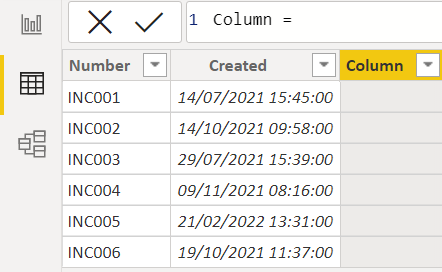

Then put this formula:

FORMAT([argument],"YYYY-MM")

NOTE: “created” is the name of my column where there is the date so change it to your column name

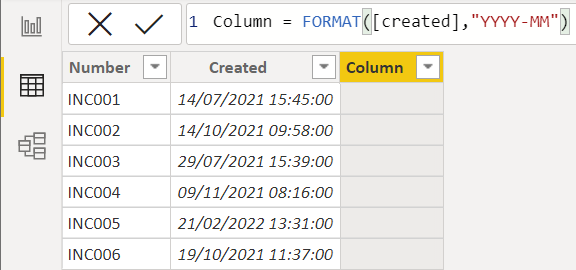

It should look like that:

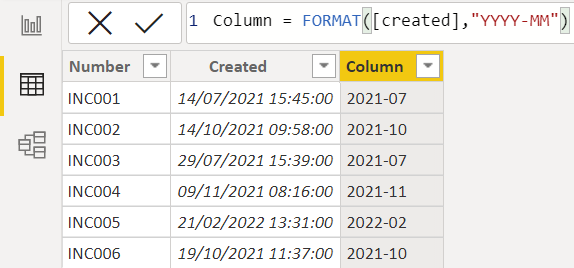

Then press “enter” in your keyboard or just click on the “OK” button. I will change the name, to do so, just right click on the column and select “rename” or in the formula put:

month = FORMAT([argument],"YYYY-MM")

Instead of:

column = FORMAT([argument],"YYYY-MM")

If you want it weekly instead of monthly, the formula will be:

FORMAT([argument],"YYYY-WW")

This formula will show the first week with 1 number (for instance 2022-1) instead of 2 (for instance 2022-01), to display it that way:

FORMAT([argument],"YYYY")&"-W"&FORMAT(WEEKNUM([argument],2),"00")

In the other hand, if you are going to use this column to create a weekly trend chart, use this formula:

FORMAT([argument],"YYYY")&"-W"&FORMAT(WEEKNUM([argument],2)-1,"00")

NOTE: 2 is to say that the week begins on Monday, if you want to start on Sunday, put 1.

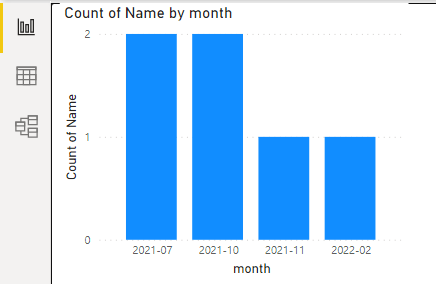

Now I am going back to my chart, in the “visualizations”, in the “axis”, just add the “month” (the new column) and it will display correctly.
